Orlandoo Hunter D4L Radio System w/4 in 1 ESC/Receiver
The Orlandoo Hunter D4L Radio System is a high performance radio system that provides multi-functionality for Orlandoo micro size models....
The Orlandoo Hunter D4L Radio System is a high performance radio system that provides multi-functionality for Orlandoo micro size models. The receiver is a 4-in-1 unit with a built in ESC, as well as connection ports to connect the included switch, sound and light modules. The receiver design helps to save room under the bodies of your favorite Orlandoo model, and the radio allows on/off control of the light system, as well as control the volume of the sound module. If you own an Orlandoo Hunter model, this radio system is a must have accessory to simplify the electronics layout, while adding increased functionality to your favorite micro model!
NOTE:
- A PH2.0 to female JST adapter is required to connect a JST battery to the receiver.
- The D4L system requires D4L compatible motors. Click here for a full listing of compatible motors.
Features:
- 2.4GHz eliminates interference
- Built in ESC with forward, reverse and brake functions takes up less room under the body
- Included sound module simulates engine start up, forward, reverse, idle and engine shut down sounds
- Included light controller provides headlights, auxiliary lights, double flash lights, turn signals, brake lights and reverse lights
Specifications:
- Transmitter:
- Operating Voltage: 4.4-8.4V
- Frequency: 2.4GHz
- FHSS Output Power: <100mW
- Power Supply: 4 AA Batteries
- Screen Type: LED
- Receiver Module:
- Operating Voltage: 6V-8.4V (2S LiPo or 6 cell NiMH)
- ESC: Brushed Motor up to 1.8A
- Sound Simulator: Amp up to 4.5W
- BEC: Output 3.3V/0.8A
Includes:

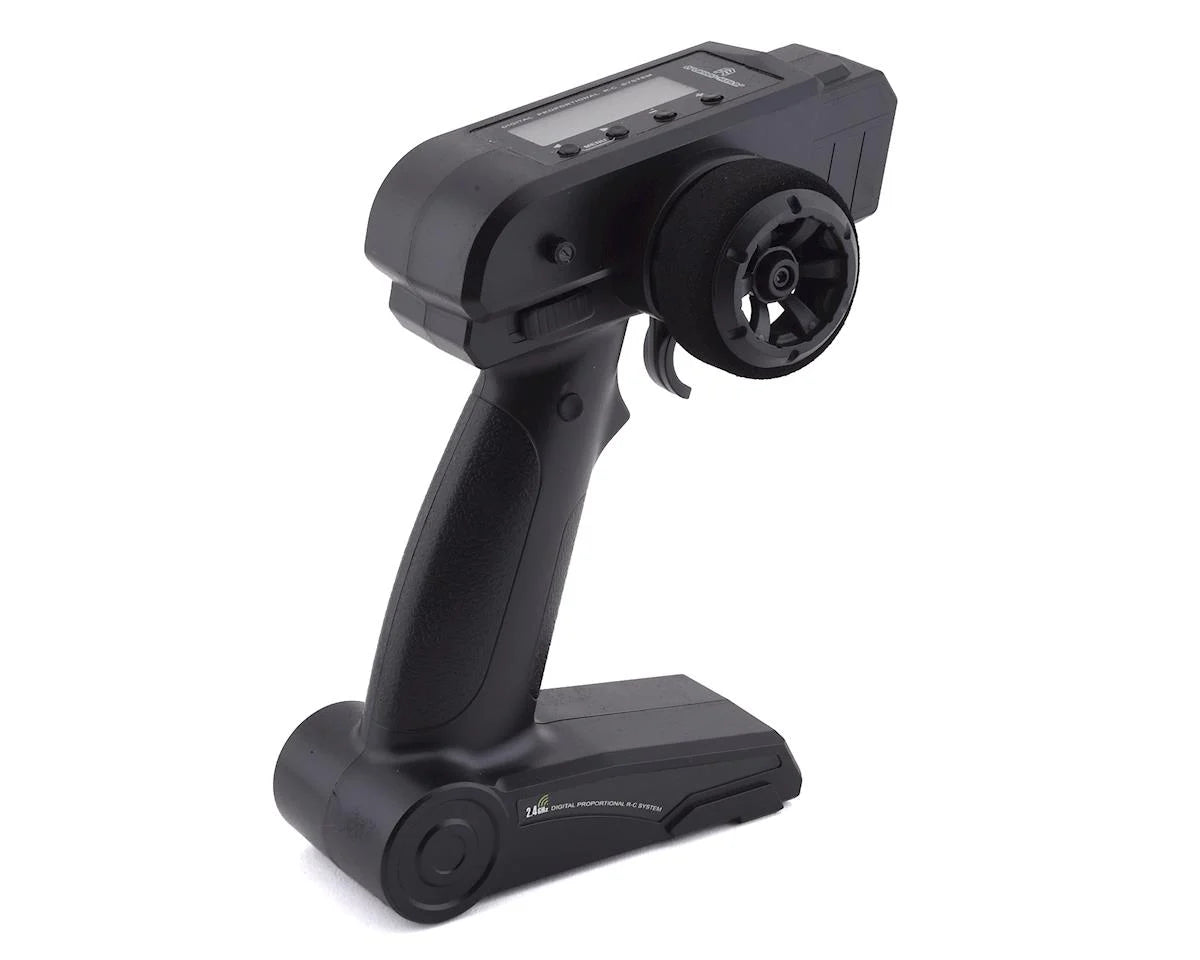

- (1) D4L Transmitter

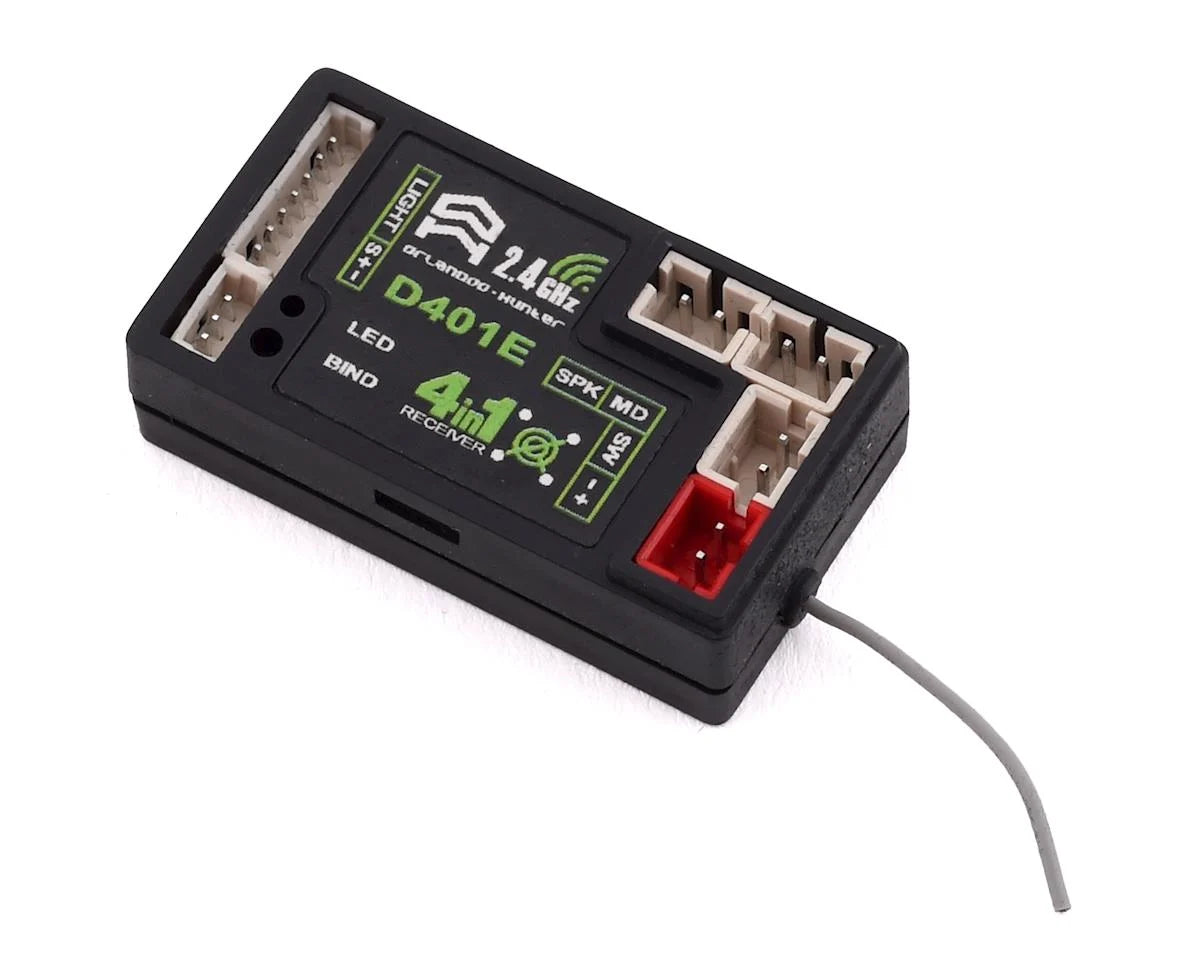

- (1) D401E 4-in-1 Recever
- (1) Light Expansion PCB
- (1) Flat Cable
- (1) On/Off Switch
- (1) Speaker

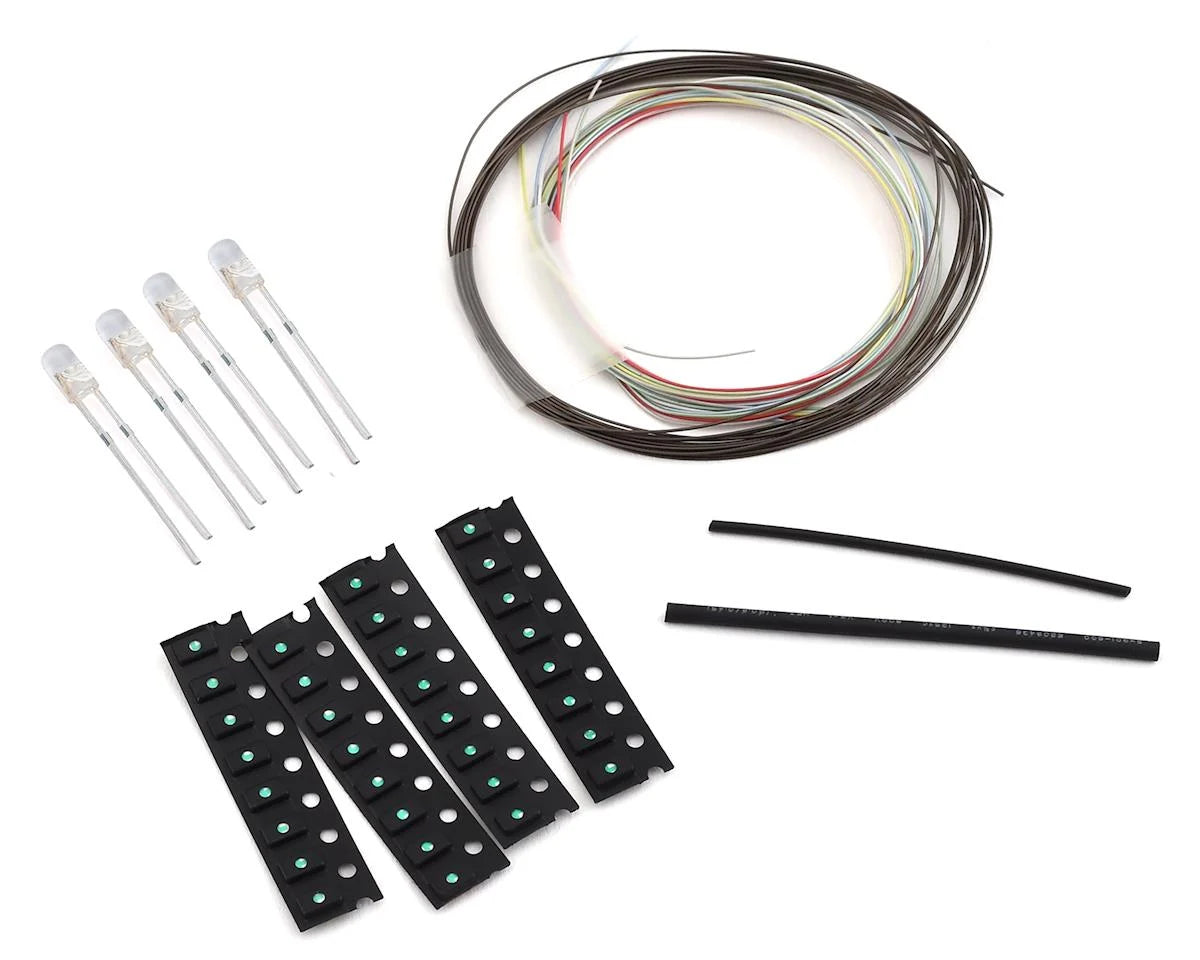

- (4) F4 LED
- (1) SMD Four Color LED
- (1) Seven color teflon wire
- (2) Heat shrink tube
- (1) Transparent Heat shrink tube
