Element RC Enduro Axle Kit
Element RC Enduro Axle Kit. This kit includes the components and hardware needed to build one complete front axle...
Element RC Enduro Axle Kit. This kit includes the components and hardware needed to build one complete front axle housing - OR - one complete rear axle housing.
NOTE: Ring gear, pinion gear, diff cover and hardware are required to build two complete axles.
Includes:
- (1) Assembly instructions

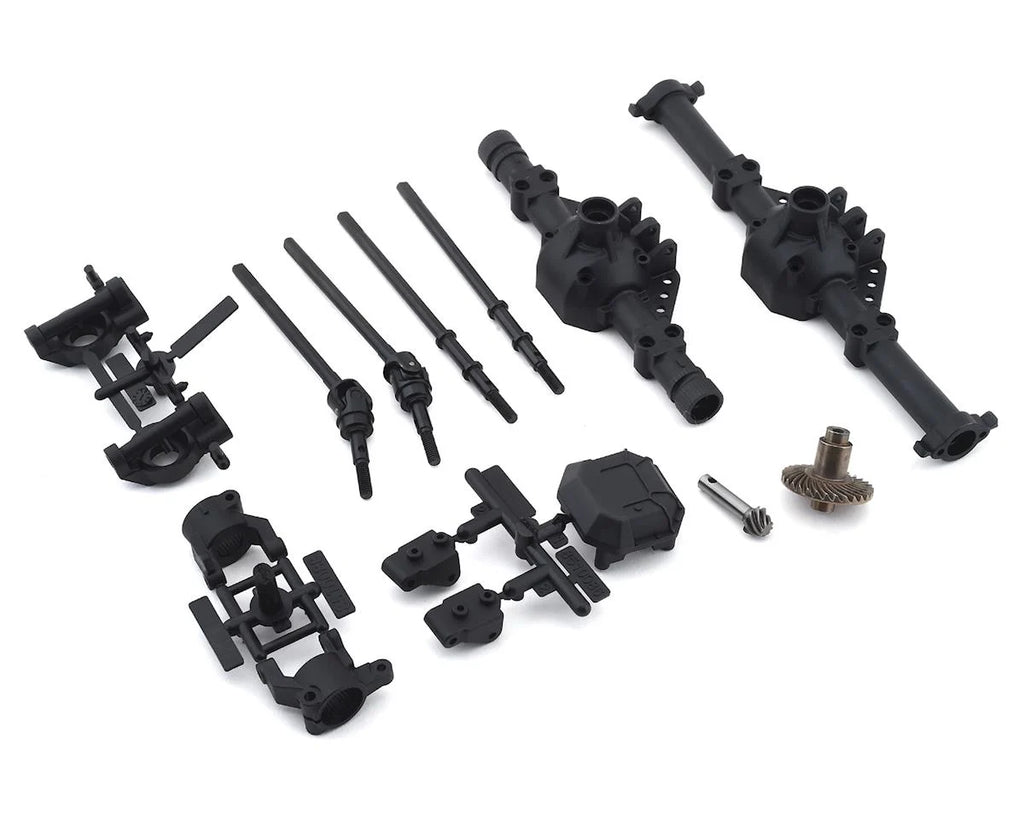

- (1) CR10 Axle Housing
- (2) CR10 Axle Mount (Outer)
- (1) CR10 Axle Housing (Front)
- (1) CR10 Axle Housing (Rear)
- (1) CR10 Caster Block (Left)
- (1) CR10 Caster Block (Right)
- (2) CR10 Steering Spindle
- (1) CR10 Steering Plate (BTA-Left)
- (1) CR10 Steering Plate (BTA-Right
- (1) CR10 Ring Gear [30T]
- (1) CR10 Pinion Gear [8T]
- (2) CR10 Universal (Front)
- (2) CR10 Drive Shaft (Rear)

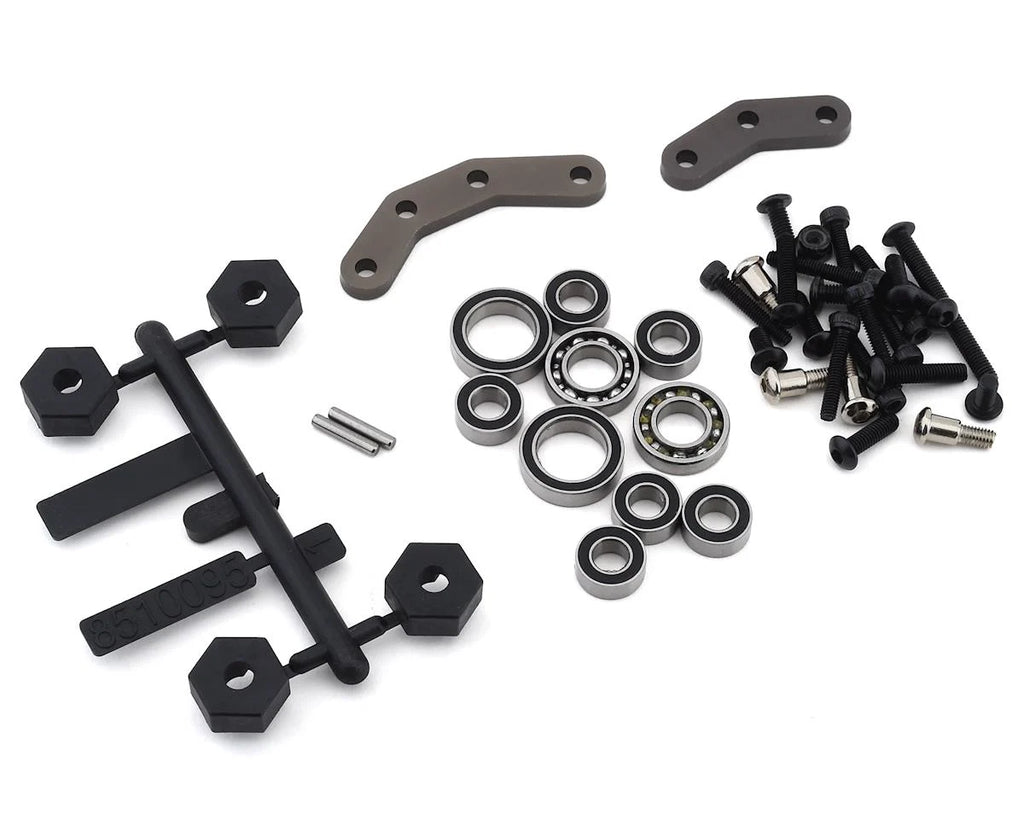

- (4) CR10 Wheel Hex, Composite
- (4) Shoulder Screw [M3x4x10mm]
- (2) M2.5x0.45x16mm SHCS (Black)
- (4) M2.5x0.45x14mm SHCS (Black)
- (2) M3x14mm BHCS (Black)
- (4) M3x0.5x12mm BHCS (Black)
- (4) M3x0.5x6mm BHCS (Black)
- (2) CR10 Drive Shaft Pin [2x11mm]
- (6) Rubber Sealed Ball Bearing [5x
- (2) Ball Bearing [7x14x3.5mm]
- (2) Ball Bearing (Rubber Shielded)
