XRAY X10 2022 Spec 1/10 Electric GT Pan Car Kit
The XRAY X10 2022 Spec 1/10 Electric GT Pan Car Kit, is the next level in precision 1/10 pan...
The XRAY X10 2022 Spec 1/10 Electric GT Pan Car Kit, is the next level in precision 1/10 pan car design. Made with the latest improvements and refinements, this kit is sure to give users the leading edge over the competition.
Chassis:
The graphite chassis have been given an updated design and shape. The chassis now accommodates the front Tweak-Free suspension and the Tweak-Free rear POD system. Made from 2.5mm high grade graphite, the chassis is CNC-machined for a precision fit.
Rear POD System:
The rear POD has been redesigned and includes the Tweak-Free mounting system. Featuring aluminum bulkheads, graphite upper, lower and rear braces giving the user a Tweak-Free finish. The bulkhead also allows for rear axle height adjustment using the traditional eccentric bushings.
Tweak-Free Front Suspension:
The front suspension has been completely redesigned to achieve maximum durability and stability. By reducing the mass of components mounted high in the chassis, XRAY has lowered the CG (center of gravity) compared to previous X10 chassis. Topping off the front suspension are the included "big bore" springs. The larger diameter allows for a smoother and more precise movement.

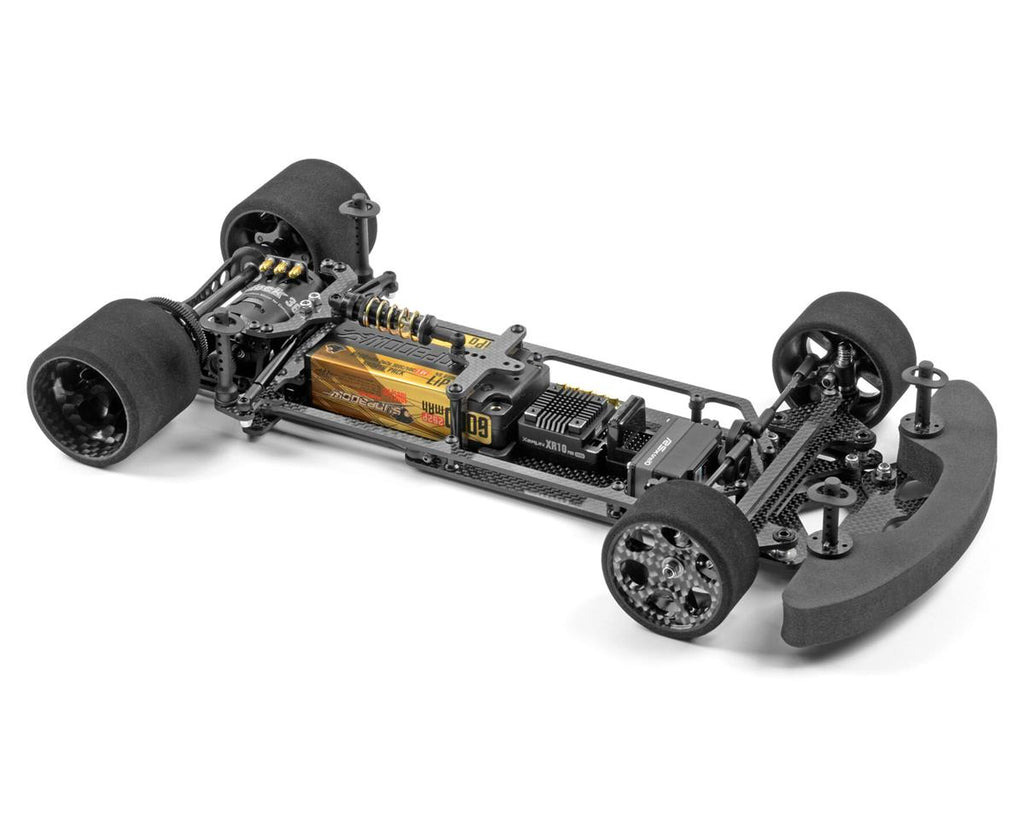

NOTE: Completed kit shown in photos is for illustrative purposes only. The model you will receive is a kit that requires assembly and accessories. See needed to complete list below for a full list of items required to complete the model.
Features:
Chassis:
The graphite chassis have been given an updated design and shape. The chassis now accommodates the front Tweak-Free suspension and the Tweak-Free rear POD system. Made from 2.5mm high grade graphite, the chassis is CNC-machined for a precision fit.
Rear POD System:
The rear POD has been redesigned and includes the Tweak-Free mounting system. Featuring aluminum bulkheads, graphite upper, lower and rear braces giving the user a Tweak-Free finish. The bulkhead also allows for rear axle height adjustment using the traditional eccentric bushings.
Tweak-Free Front Suspension:
The front suspension has been completely redesigned to achieve maximum durability and stability. By reducing the mass of components mounted high in the chassis, XRAY has lowered the CG (center of gravity) compared to previous X10 chassis. Topping off the front suspension are the included "big bore" springs. The larger diameter allows for a smoother and more precise movement.
NOTE: Completed kit shown in photos is for illustrative purposes only. The model you will receive is a kit that requires assembly and accessories. See needed to complete list below for a full list of items required to complete the model.
Features:
- Completely redesigned X10 platform for 2022
- Updates have been focused on durability, stability and traction
- Chassis plates are designed around the updated front suspension, rear pivot and chassis side braces
- Graphite chassis side braces with four different settings to alter chassis stiffness
- Aluminum center pivot mounting system improves traction & stability of the car
- Rear center pivot adjustment changes the pivot location relative to the side links
- One-piece bulkheads with upper & lower center pins achieve maximum durability and eliminate tweak
- Graphite rear upper plate to align with the bulkhead centering pins
- Updated front suspension completely redesigned for maximum durability & to eliminate tweak
- Single graphite arms replace composite arms for maximum rigidity.
- Heavy-duty 4mm kingpin system with fixed camber geometry
- Front suspension flex adjustment system with three different flex settings
- Graphite molded steering block for 4mm king pin with updated Ackermann positions for improved steering response
- Big bore front springs with larger diameter for smoother & more precise dampening
- World Championship, ROAR National Championship and EFRA European Championship winning platform
Includes:
- (1) XRAY X10 2022 Spec 1/10 Electric GT Pan Car Kit
- 2 Channel Radio & Receiver
- Steering Servo
- 1/10 Pan Car Wheels and Tires
- Motor & ESC
- Battery Pack & Compatible Charger
- 1/10 Pan Car Body
- Polycarbonate Paint
